UDMTK 5 - Feed-through terminal block

In stock

Part No

3048467

Manufacturer

Phoenix

£9.03

Feed-through terminal block

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

Overview

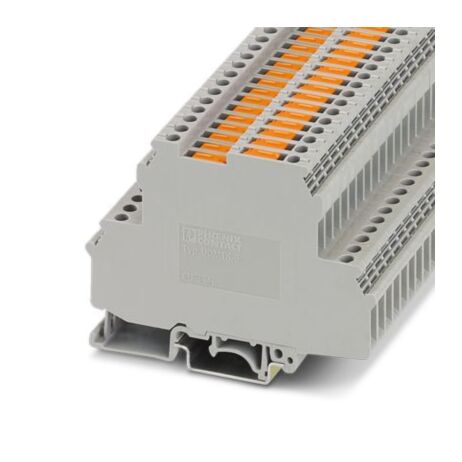

Feed-through terminal block, nom. voltage: 400 V, nominal current: 10 A, 1st and 2nd level, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 4 mm², 2nd level, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, NS 32, color: gray

Technical Info

More Information
Manufacturer	Phoenix
Rated current In	10
Internally connected stages	true
Number of clamp positions per level	2
Number of levels	2
Closing plate required	No
Type of electrical connection 2	Screw connection
Type of electrical connection 1	Screw connection
Type	Feed-Through
Operating temperature (°C)	-60
Rated voltage	400
Width (mm)	6.16
Height (mm)	93
Depth (mm)	67.1
