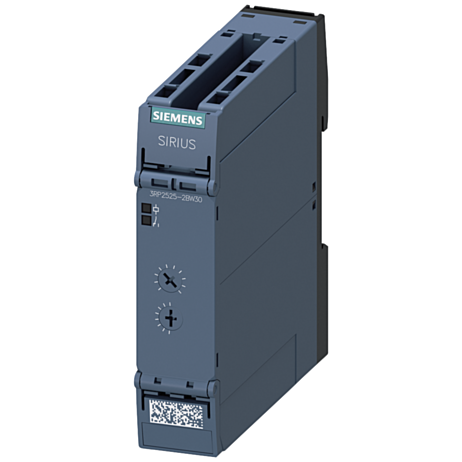

Timing relay, ON-delay, 2 CO, 7 time ranges, 0.05s-100h, 12-240 V AC/DC

In stock
Part No
3RP2525-2BW30
Manufacturer
Siemens
£101.41

Timing relay, ON-delay, 2 CO, 7 time ranges, 0.05s-100h, 12-240 V AC/DC


Add to basket
Available for backorder
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

Timing relay, electronic on-delay 2 change-over contacts, 7 time ranges 0.05 s...100 h 12-240 V AC/DC at 50/60 Hz AC with LED, Spring-type terminal (Push-In) ctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies.
The 3RP25 timing relays replace the well-proven 3RP15 series.
SIRIUS relays - one range for every application.
More Information
ManufacturerSiemens
Rated Control Supply Voltage AC (50 Hz)12 V
GTIN4011209943674
Time range0.05
Number of outputs, undelayed, normally closed contact0
Number of outputs, undelayed, change-over contact0
Number of outputs, undelayed, normally open contact0
Rated Control Supply Voltage DC12 V
Rated Control Supply Voltage AC (60 Hz)12 V
With semiconductor outputfalse
Net Weight (Kg)0.160
Width (mm)22.5
Height (mm)100
Depth (mm)90
