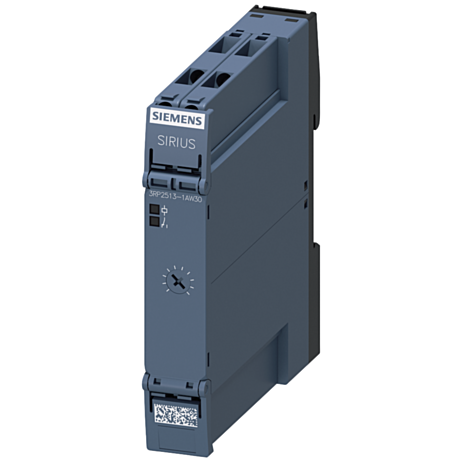

Timing relay, ON-delay, 1 CO, 1 time range, 5 s - 100 s, 12-240 V AC/DC with LED

In stock
Part No
3RP2513-1AW30
Manufacturer
Siemens
£53.89

Timing relay, ON-delay, 1 CO, 1 time range, 5 s - 100 s, 12-240 V AC/DC with LED


Add to basket
5 Available for delivery
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

Timing relay, electronic ansprechverzögert 1 change-over contact, 1 time range 5...100 s 12-240 V AC/DC at 50/60 Hz AC with LED, Screw terminal timing relay SIRIUS 3RP25, slow-operating, for various switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for cascaded motor startup.
Wide range of applications due to wide variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The innovative enclosure concept in an industrial design offers labeled cover caps, removable terminals and much more.
Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies.
The 3RP25 timing relays replace the well-proven 3RP15 series.
SIRIUS relays - one range for every application.
More Information
ManufacturerSiemens
Rated Control Supply Voltage AC (50 Hz)12 V
GTIN4011209943599
Number of outputs, undelayed, normally closed contact0
Number of outputs, undelayed, change-over contact0
Number of outputs, undelayed, normally open contact0
Rated Control Supply Voltage DC12 V
Rated Control Supply Voltage AC (60 Hz)12 V
With semiconductor outputfalse
Net Weight (Kg)0.138
Width (mm)17.5
Height (mm)100
Depth (mm)90
