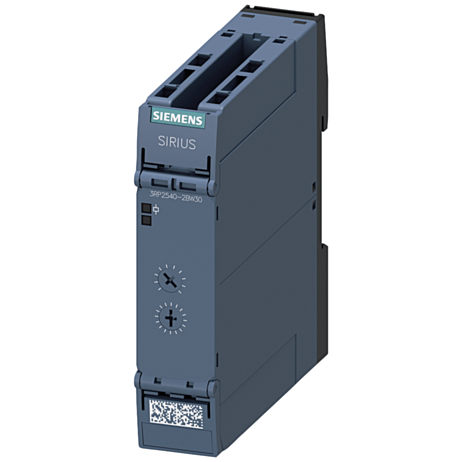

Timing relay, OFF-delay, 7 time ranges 0.05-600s, 2 CO

In stock
Part No
3RP2540-2BW30
Manufacturer
Siemens
£151.12

Timing relay, OFF-delay, 7 time ranges 0.05-600s, 2 CO


Add to basket
Available for backorder
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

Timing relay, electronic OFF delay without control signal or smooth passing make contact non-volatile 7 time ranges 0.05...600 s 12-240 V AC/DC at 50/60 Hz AC, 2 change-over contacts with LED Spring-type terminal (push-in) caps, removable terminals and much more.
Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies.
The 3RP25 timing relays replace the well-proven 3RP15 series.
SIRIUS relays - one range for every application.
More Information
ManufacturerSiemens
Rated Control Supply Voltage AC (50 Hz)12 V
GTIN4011209943803
Time range0.05
Number of outputs, undelayed, normally closed contact0
Number of outputs, undelayed, change-over contact0
Number of outputs, undelayed, normally open contact0
Rated Control Supply Voltage DC12 V
Rated Control Supply Voltage AC (60 Hz)12 V
With semiconductor outputfalse
Net Weight (Kg)0.170
Width (mm)22.5
Height (mm)100
Depth (mm)90
