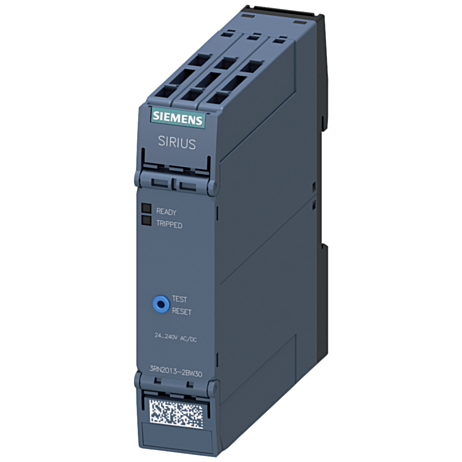

Thermistor motor protection relay, standard, spring-type terminal, 2 CO, 24-240 V AC/DC

In stock
Part No
3RN2013-2BW30
Manufacturer
Siemens
£171.00

Thermistor motor protection relay, standard, spring-type terminal, 2 CO, 24-240 V AC/DC


Add to basket
Available for backorder
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

Thermistor motor protection relay Standard evaluation unit 22.5 mm enclosure Spring-type terminal 2 change-over contacts US = 24 V-240 V AC/DC Manual/Auto/Remote reset with ATEX approval 2 LEDs (READY/TRIPPED) Safe galvanic isolation Test/reset button Wire break monitoring Short circuit monitoring non-volatile vices are available with screw-type or spring-loaded (push-in) terminals. There are versions in widths of 17.5 mm or 22.5 mm, for a TH35 DIN rail or for screw-on fastening with an adapter (accessory) as well as with hard gold plated contacts.
Standardized accessories for all device versions, such as detachable terminals, push-in lugs and coding pins, simplify selection and storage.
The 3RN2 thermistor motor protection relays replace the proven 3RN1 series.
SIRIUS relays - one range for every application.
More Information
ManufacturerSiemens
GTIN4047621006741
No. of Normally Closed Contacts (NC) 0
Number of contacts as change-over contact2
No. of Normally Open Contacts (NO)0
Error registration possibletrue
External reset possibletrue
Net Weight (Kg)0.177
Width (mm)22.5
Height (mm)100
Depth (mm)90
