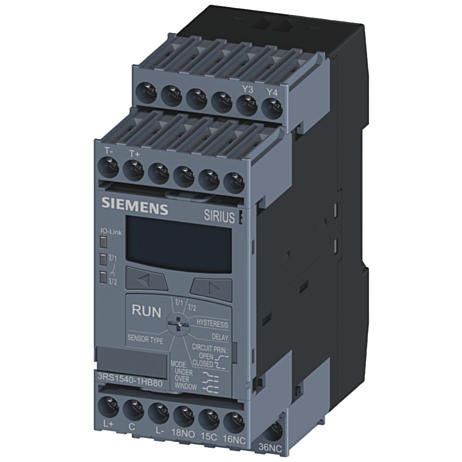

Temperature monitoring relay for IO-Link thermocouple

In stock
Part No
3RS1540-1HB80
Manufacturer
Siemens
£371.17

Temperature monitoring relay for IO-Link thermocouple


Add to basket
Available for backorder
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

temperature monitoring relay for IO-Link Thermocouple J,K, T,E, N,R, S,B 2 limit values -99 °C to 1800 °C 3 x 1 CO, width 45 mm screw terminal !!!phased-out product!!! the preferred successor is 3RS2800-1BA40 ature monitoring relays consists of analog and digital adjustable relays for the connection of between one and three sensors (resistance sensors or thermocouples). They are available with screw-type or spring-type terminals. The temperature can be displayed optionally in either °C or °F. Likewise, versions are available with communication via IO-Link.
Labels, push-in lugs and sealable covers are available as accessories.
SIRIUS relays - one range for every application.
More Information
ManufacturerSiemens
GTIN4011209895966
Rated Control Supply Voltage DC18 V
No. of Normally Closed Contacts (NC) 0
Number of contacts as change-over contact3
No. of Normally Open Contacts (NO)0
Error registration possibletrue
External reset possibletrue
Net Weight (Kg)0.320
Width (mm)45
Height (mm)106
Depth (mm)91
