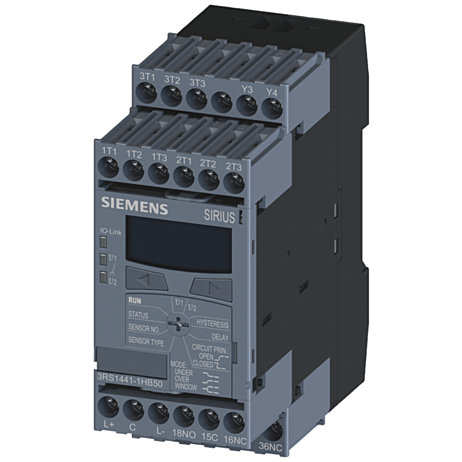

Temperature monitoring relay for IO -Link Pt100/1000, KTY83/84, NTC 1 up to 3 sensors

In stock
Part No
3RS1441-1HB50
Manufacturer
Siemens
£587.90

Temperature monitoring relay for IO -Link Pt100/1000, KTY83/84, NTC 1 up to 3 sensors


Add to basket
Available for backorder
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

temperature monitoring relay for IO-Link Pt100/1000 KTY83/84, NTC 1 to 3 sensors, 2 limit values -50 °C to 750 °C 3 x 1 CO, width 45 mm screw terminal !!!phased-out product!!! the preferred successor is 3RS2800-1BA40+3RS2900-1AA30 Temperature monitoring relay SIRIUS 3RS14 for the measurement of temperatures in solid, liquid and gaseous media, e.g. for open and closed loop control of processes or for protecting motors and plants against excessive temperatures.
The devices are easy to operate without any complicated menu system. The temperature is indicated on a 3-digit LED display. The relays with two threshold values are suitable for all common types of sensor, such as PT100, PT1000, KTY, NTC, thermocouple.
The family of 3RS temperature monitoring relays consists of analog and digital adjustable relays for the connection of between one and three sensors (resistance sensors or thermocouples). They are available with screw-type or spring-type terminals. The temperature can be displayed optionally in either °C or °F. Likewise, versions are available with communication via IO-Link.
Labels, push-in lugs and sealable covers are available as accessories.
SIRIUS relays - one range for every application.
More Information
ManufacturerSiemens
GTIN4011209895942
Rated Control Supply Voltage DC18 V
No. of Normally Closed Contacts (NC) 0
Number of contacts as change-over contact3
No. of Normally Open Contacts (NO)0
Error registration possibletrue
External reset possibletrue
Net Weight (Kg)0.333
Width (mm)45
Height (mm)106
Depth (mm)91
