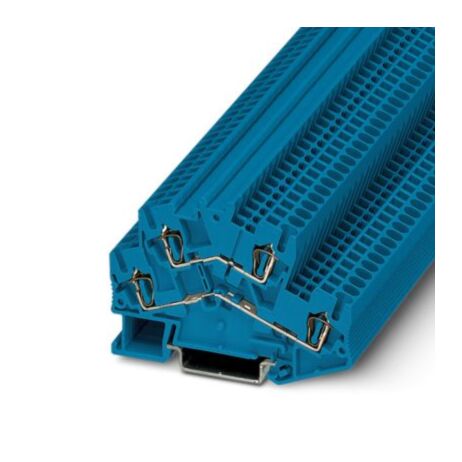

STTBS 2,5 BU - Double-level spring-cage terminal block
STTBS 2,5 BU - Double-level spring-cage terminal block

STTBS 2,5 BU - Double-level spring-cage terminal block

In stock

Part No

3038493

Manufacturer

Phoenix

£1.78

Double-level spring-cage terminal block

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

Overview

Double-level spring-cage terminal block, nom. voltage: 500 V, nominal current: 22 A, connection method: Spring-cage connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: blue

Technical Info

More Information
Manufacturer	Phoenix
Rated current In	22
Internally connected stages	false
Number of clamp positions per level	2
Number of levels	2
Closing plate required	Yes
Type of electrical connection 2	Spring clamp connection
Type of electrical connection 1	Spring clamp connection
Type	Double-level spring-cage terminal block
Operating temperature (°C)	-60
Rated voltage	500
Width (mm)	5.15
Height (mm)	78
