STTB 2,5/4P-PV - Double-level terminal block

In stock

Part No

3061509

Manufacturer

Phoenix

£3.96

Double-level terminal block

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

Overview

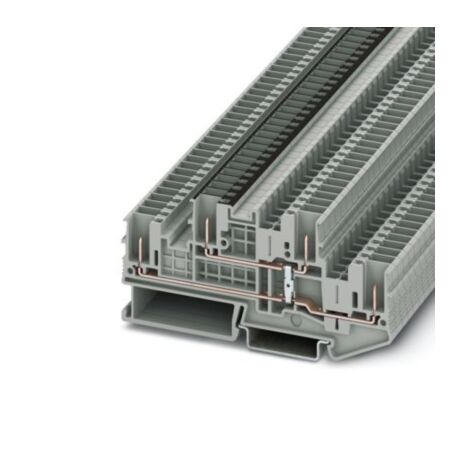

Double-level terminal block, Current and voltage are determined by the plug used., with equipotential bonder, nom. voltage: 500 V, nominal current: 22 A, connection method: Plug-in connection, 1st and 2nd level connection left, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: NS 35/15, NS 35/7,5, color: gray

Technical Info

More Information
Manufacturer	Phoenix
Rated current In	22
Internally connected stages	true
Number of clamp positions per level	2
Number of levels	2
Closing plate required	Yes
Type of electrical connection 2	Plug-in connection
Type of electrical connection 1	Plug-in connection
Type	Double-level terminal block
Operating temperature (°C)	-60
Rated voltage	500
Width (mm)	5.15
