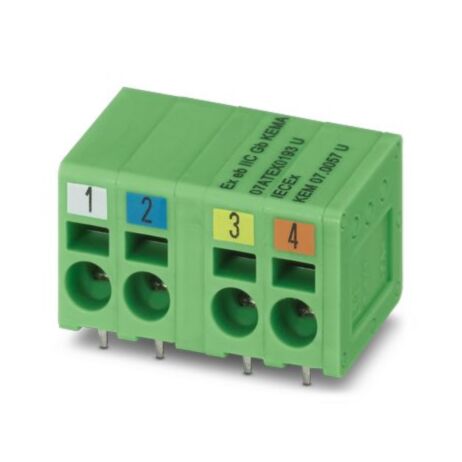

SPT 2,5/ 4-H-EX PROFINET 2 - PCB terminal block

In stock
Part No
1034522
Manufacturer
Phoenix
£3.73

PCB terminal block


Add to basket
Available for backorder
Add To Quote

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

PCB terminal block, nominal current: 23 A, nominal cross section: 2.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: SPT 2,5/..-H-EX PROFINET, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard. PCB terminal block satisfies the requirements of the “Guideline for PROFINET” in the 2017-05 edition, suitable for CAT5
More Information
ManufacturerPhoenix
GTIN4055626539744
Angle PCB/conductor connectionEV000154
Connection type conductorEV005752
Diameter connection pin1.1
Type of PCB fasteningEV009147
Number of levels1
Operating temperature (°C)-50
Material connection surfaceEV009526
Number of electrical connections4
Modular spacing connections5
Type of bandingEV009305
Height (mm)16
