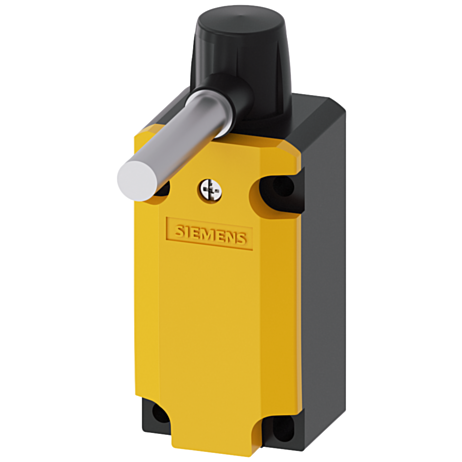

SIRIUS hinge switch, 2 NC/1 NO integr.

In stock
Part No
3SE5132-0LU22
Manufacturer
Siemens
£39.12

SIRIUS hinge switch, 2 NC/1 NO integr.


Add to basket
Available for backorder
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

Hinge switch Plastic enclosure 40 mm according to EN 50041 Device connection 1 x (M20 x 1.5) Snap-action contacts 2 NC/1 NO integrated, with solid shaft Diameter = 10 mm Actuating angle 10° o EN 50047 and EN 50041. The devices are suitable for use in any climate and have worldwide approval (IEC, UL).
Various enclosure sizes, with hollow or solid shafts, are available in plastic or metal. In addition, versions are available with an integrated hinge. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Actuator heads with hollow or solid shafts are available as accessories.
Safety is a SIRIUS business.
More Information
ManufacturerSiemens
GTIN4011209878075
Suitable for Safety FunctionsYes
No. of Normally Closed Contacts (NC) 2
Number of contacts as change-over contact0
No. of Normally Open Contacts (NO)1
Housing materialPlastic
Height of sensor87.3
Width sensor40
Rated operation current Ie at DC-13, 24 V3
Number of safety auxiliary contacts2
Forced openingtrue
Rated operation current Ie at AC-15, 125 V6
Switching function latchingfalse
Rated operation current Ie at DC-13, 125 V0.55
Rated operation current Ie at AC-15, 24 V6
Output electronicfalse
Alignment of the control elementEV010916
Switching functionEV000533
Degree of protection (IP)IP66/67
Net Weight (Kg)0.173
