SIMATIC S7-1200 G2

REDEFINING BASIC AUTOMATION



The next-gen update of the SIMATIC S7-1200 controller family shakes up the basic automation space with efficient motion control and much, much more.



What to expect from the SIMATIC S7-1200 G2



The highly anticipated SIMATIC S7-1200 G2 signifies a major step change when it comes to simpler automation applications. Expect an automation system that minimises complexity which is also optimised for cost efficiency.

Coordinated machine safety and motion control in one single PLC means that you can reduce system complexity, which is all supported by one common engineering platform (TIA Portal).

Key highlights of the updated S7-1200 controller range includes:

  • Efficient Motion Control with integrated motion control technology objects
  • Enhanced performance and scalability with a smaller space-saving design
  • Redefined machine safety hardware concept with fail-safe signal boards
  • NFC functionality for wireless access to diagnostics, operational & device data.
simatic-s7-1200-g2-standard-and-failsafe-cpu
simatic-s7-1200-g2-flexible-machine-safety_1_

Flexible Machine Safety

Achieve more flexibility with the updated machine safety hardware concept. Easy expansion of fail-safe I/Os according to the number of safety functions with up to two fail-safe signal boards, that attaches to the front of the cpu, or fail-safe signal modules with mixed I/Os.

Fail-safe engineering integrated in STEP 7 Basic (no seperate safety license necessary from V20 onwards).

Flexible machine safety implementation with multiple operating modes (e. g., Safely-Limited-Speed) to ensure maximum productivity.

simatic-s7-1200-g2-efficient-motion-control_1_

Efficient Motion Control

The S7-1200 G2'S integrated motion control functionality allows you to satisfy simple single axis control, up to coordinated axis control, and easy kinematics. System configuration has also been simplified with integrated motion control technology objects.

PROFINET IRT for fast program execution at synchronised intervals

Supports the SIMATIC Ready-to-use motion control applications and comprehensive motion control trainings to help you get started.

simatic-s7-1200-g2-nfc-functionality

Dive into data with NFC functionality

Since Near Field Communication (NFC) functionality is built into all SIMATIC S7-1200 G2 controllers, you can wirelessly access  diagnostic data and previously configured process data for quick and efficient machine service as well as heightened machine data transparency.

Gather Information without having to power the device.

Web API as an interface for reading and writing  certain CPU data (based on configuration).

Setting IP-addresses and other network settings without programming device during commissioning.

NFC functionality eliminates the need for direct access with additional programming device to the PLC

simatic-s7-1200-g2-new-space-saving-design_1_

More power in a smaller package

Despite its smaller space-saving design which has a reduced DIN rail footprint of ~ 25%, the S7-1200 G2 comes with enhanced processing power, dedicated communication performance, and a significant memory boost. Additionally, all CPU models now come with dual ethernet ports.

Supports the connection of up to 31 PROFINET devices and synchronised program execution with PROFINET IRT.

Removable high density terminal blocks with push-in wiring for ease of use.

SIMATIC Motion Control - Supported Technology Objects

Efficient motion control enters the basic automation space

simatic-s7-1200-g2-position-control-technology-object

TO_PositioningAxis

simatic-s7-1200-g2-spped-axis-technology-object

TO_SpeedAxis

TO-SynchronousAxis-SoftBlue-Positive_original

TO_SynchronousAxis

simatic-s7-1200-g2-external-encoder-technology-object_1

TO_ExternalEncoder

simatic-s7-1200-g2-cam-track-technology-object

TO_CamTrack

simatic-s7-1200-g2-output-cam-technology-object

TO_OutputCam

simatic-s7-1200-g2-measuring-input-technology-object

TO_MeasuringInput

simatic-s7-1200-g2-cam-technology-object

TO_Cam

simatic-s7-1200-g2-kinematics-technology-object

TO_Kinematics

Scalable, cost-optimised and powerful portfolio for the basic automation segment



The SIMATIC S7-1200 G2 sets new standards for simple but high-precision automation controllers.

This new controller family is the solution to increasing demand for smart automation solutions that offers perfect coordination between standard, safety and motion control in a single PLC.

Reap the rewards of fast generation of user programs with less development effort and easily configurable motion profiles using the integrated Technology Objects.

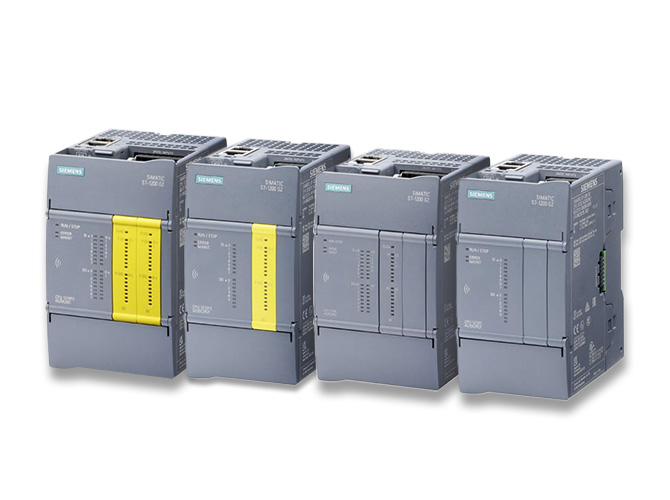

simatic-s7-1200-g2-range_1

Setting new standards in the field of basic automation controllers

The SIMATIC S7-1200 G2 controller range is even more compact than its predecessor and yet it is perfect for stand-alone and interconnected machines as well as cost-effective automation solutions.

Take advantage of extended functionality for small motion control systems and small process applications.

CPU Technical Data

CPU 1212(F)C

CPU 1214(F)C

RAM Data

500 k

750 k

RAM Progr.

CPU 1212C: 150 k

CPU 1212FC: 200 k

CPU 1214C: 250 k

CPU 1214FC: 200 k

W x H x D (mm)

70 x 125 x 100

80 x 125 x 100

Integrated DI/DO

6/8

14/10

PROFINET/Modbus TCP

2 ports

2 ports

Communication Modules

3 max

3 max

Total SMs + CMs

6 max

10 max

Total Signal Boards (SBs)1 max2 max
Memory CardOptionalOptional

Power Supply Voltage

Input Type Voltage

Output Type and Power

DC/DC/DC

DC/DC/RLY

AC/DC/RLY (Std. only)

DC/DC/DC

DC/DC/RLY

AC/DC/RLY (Std. only)



simatic-s7-1200-standard-cpu

Enhanced Scalable Hardware Portfolio

With the new cost-efficient hardware concept, you can rely on a more competitive PLC system that offers higher levels of flexibility. boosted performance and additional scalability.

Its particularly useful for simple integration in interconnected systems and into systems that require one or more HMI devices.



Digital SBsAnalog SBsDigital SMsAnalog SMs

8 DI 24V 100 kHz

4 AI

DI 16 x 24 V DC

8 AI

8 DQ 24V 100 kHz

4 AQ

DQ 16 x 24 V DC 0.5 A

8 AQ

4 DI / 4 DQ 24V 100 kHz

2 AI / 2 AQ

DQ 16 x Relay

4 AI / 4 AQ

4 DI / 4 DQ 5V 200 kHz

4 TC

8 DI / 8 DQ

8 TC



2 RTD

8 DI / 8 RLY

4 RTD

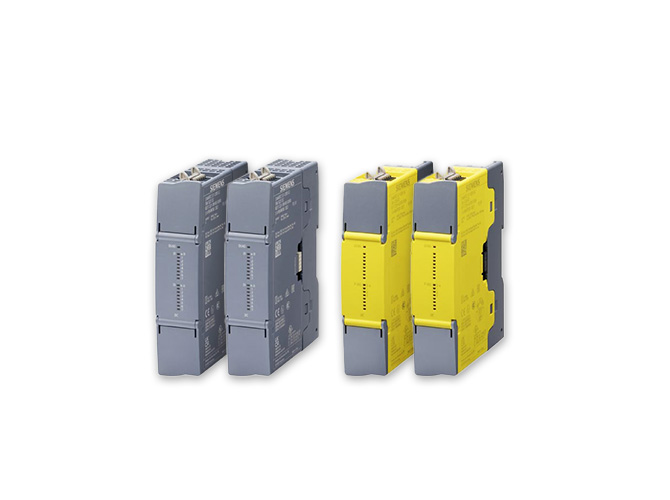

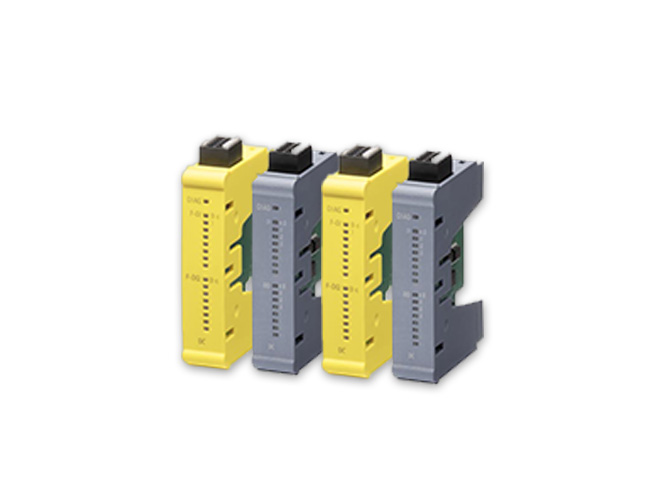

simatic-s7-1200-g2-signal-boards-and-signal-modules

Optimised Machine Safety Hardware Concept

Improved F-IO Portfolio with F-SBs and mixed I/O modules.

1oo1 (One out of One):
1oo1 as simple redundancy, a single input connected to a fail-safe digital input.

1oo2 (One out of Two):
Redundancy with cross-diagnosis: There are two independent sensors, each connected to an F-DI. Both sensors provide signals to the F-DI. The F-DI monitors the signals and makes decisions based on both inputs. This configuration is normally used in safety-critical applications.

Vs: Integrated Sensor supply,
Allows you to detect short-circuit or overload scenarios, and react accordingly.

Signal Boards (SBs)Signal Modules (SMs)

4x F-DI(1oo1) / 2x F-DI(1oo2), 4-Vs*

8x F-DI(1oo1) / 4x F-DI(1oo2), 8-Vs*

2x F-DQ, PP-PM*

4x F-DQ, PP-PM*

2x F-DI(1oo1) / 1x F-DI (1oo2),
1x F-DQ. PP-PM*

4x F-DI(1oo1) / 2x F-DI (1oo2),
2x F-DQ. PP-PM, 2x DI



simatic-s7-1200-failsafe-cpu

Optional Accessories - SIMATIC Memory Card

The SIMATIC Memory Card that the new S7-1200 G2 CPU's support boast increased lifespan 500,000 write accesses possible.

  • No special card reader is required (SD card with FAT 32 file system) and experience no data lost despite openness with CPU shutdown.
  •
  • Project sent as an e-mail with transfer to memory card using standard PC.
  •

Benefit from increased copy protection – Option of linking the programs to the memory card
serial numbers.

What can be saved on a S7-1200 Memory Card?

Program DataData Protocol
FilesSystem DataProjects
Recipes
simatic-s7-1200-g2-simatic-memory-card

Optimal 24 VDC supply of SIMATIC S7-1200 G2

Details for the new Power Module PM1207 G2 SITOP

Input voltage: 120/230 V AC, automatic switching

Output: 24 V/5 A

Efficiency > 90 %

Power information via diagnostics interface over a digital input of the PLC

Read out PSU data on CPU via NFC

Removeable push-in clamps for input and output

DIN rail and wall mounting

Width: only 70 mm, same size with double performance compared to previous device

2 variants: without and with Ex-protection certification

Configurable in the TIA Portal

simatic-s7-1200-g2-power-supply
