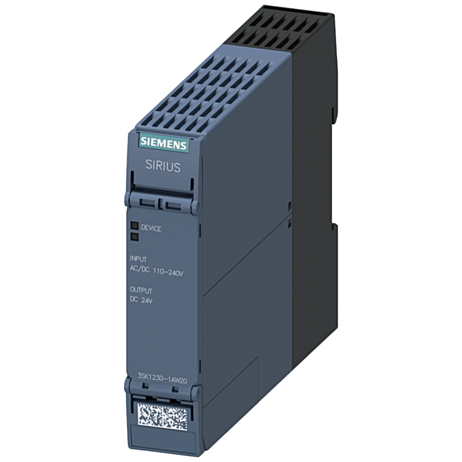

Safety switching device power supply for 3SK1 advanced series US=115-230 V AC

In stock
Part No
3SK1230-1AW20
Manufacturer
Siemens
£89.82

Safety switching device power supply for 3SK1 advanced series US=115-230 V AC


Add to basket
Available for backorder
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

SIRIUS safety relay Power supply for 3SK1 Advanced series Us = 110-240 V AC/DC screw terminal Power supply SIRIUS 3SK1 for supplying the Advanced basic units.
The 3SK1230 power supply permits the universal use of the 3SK1 devices at 110-240 V AC/DC, regardless of the available control voltage. The connection can be made using 3ZY1212 device connectors.
All the devices are available with screw-type or spring-type terminals (push-in).
The 3SK safety relays are replacing the proven 3TK28 series.
Safety is a SIRIUS business.
More Information
ManufacturerSiemens
Supply Voltage120 - 240V AC/DC
GTIN4011209913882
2nd secondary output voltage-
Stabilized-
Direct mounting possiblefalse
Output Voltage24V DC
Power Consumption (VA)17
3rd secondary output voltage-
Rated supply voltage AC 50 Hz110
Wall mounting possiblefalse
Suitable for Safety Functions-
Rated supply voltage DC110
Power Output (W)17
Short-circuit-prooftrue
Built-in width22.5
Nominal value output voltage 3-
Output Voltage VDC-
Built-in height100
Degree of protection (IP)IP20
Output Current (A)0.6
Net Weight (Kg)0.194
Width (mm)22.5
Height (mm)100
