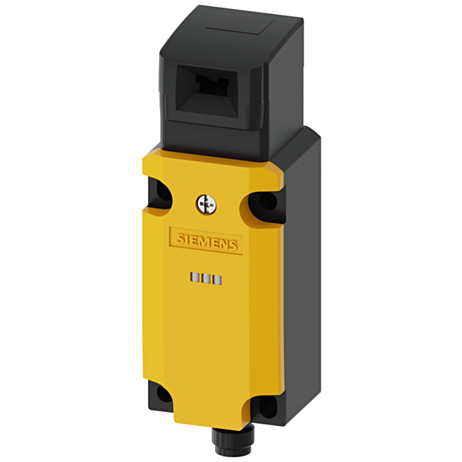

Safety position switch with separate actuator, 40 mm, acc. to EN50041 1 NO/1 NC

In stock
Part No
3SE5114-1RV10-1AF3
Manufacturer
Siemens
£108.71

Safety position switch with separate actuator, 40 mm, acc. to EN50041 1 NO/1 NC


Add to basket
Available for backorder
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

Safety position switch with separate actuator Metal enclosure, 40 mm according to EN 50041 with M12 connector, 5-pole, fixed with 2 LEDs, yellow/green 24 V DC 5 directions of approaches Pin assignment: Pin1=21, Pin2=22 Pin3=14 and LED green, Pin4=13 and LED yellow, Pin 5=ground LED The matching separate actuator 3SE5000-0AV0. must be ordered separately us display, M12 plug or locking device. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
The actuator is not included in the scope of delivery of the safety switches and must be ordered separately. Plug-in connectors and other mounting/connection accessories are available as accessories.
Safety is a SIRIUS business.
More Information
ManufacturerSiemens
GTIN4011209701267
Suitable for Safety FunctionsYes
No. of Normally Closed Contacts (NC) 1
Number of contacts as change-over contact0
No. of Normally Open Contacts (NO)1
Height of sensor37.3
Length of sensor124
Width sensor40
Rated operation current Ie at DC-13, 24 V3
Number of safety auxiliary contacts1
Forced openingtrue
Degree of protection (IP)IP66/67
Net Weight (Kg)0.480
