Safety position switch, plastic encl., 31 mm, EN50047, 1 NO/1 NC, 5-pole

In stock
Part No
3SE5234-0QV40-1AE2
Manufacturer
Siemens
£60.44

Safety position switch, plastic encl., 31 mm, EN50047, 1 NO/1 NC, 5-pole


Add to basket
Available for backorder
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

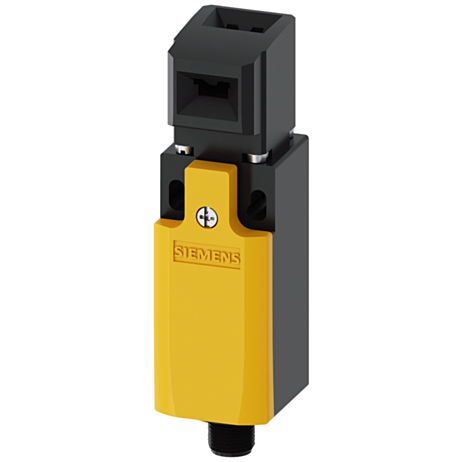

Safety position switch with separate actuator Plastic enclosure, 31 mm according to EN 50047 1 NO/2 NC slow-action contacts 5 directions of approach with M12 connector, 5-pole Pin assignment: Pin1=21, Pin4=22 Pin2=31, Pin5=32 Suitable for connection to all SIMATIC ET200* compact block I/O modules. The matching separate actuator 3SE5000-0AV../W.. must be ordered separately. us display, M12 plug or locking device. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
The actuator is not included in the scope of delivery of the safety switches and must be ordered separately. Plug-in connectors and other mounting/connection accessories are available as accessories.
Safety is a SIRIUS business.
More Information
ManufacturerSiemens
GTIN4047621064703
Suitable for Safety FunctionsYes
No. of Normally Closed Contacts (NC) 2
Number of contacts as change-over contact0
No. of Normally Open Contacts (NO)0
Housing materialPlastic
Height of sensor33
Length of sensor118
Width sensor31
Rated operation current Ie at DC-13, 24 V3
Number of safety auxiliary contacts2
Forced openingtrue
Rated operation current Ie at AC-15, 125 V4
Rated operation current Ie at DC-13, 125 V0.55
Rated operation current Ie at AC-15, 24 V4
Degree of protection (IP)IP65
Net Weight (Kg)0.123
