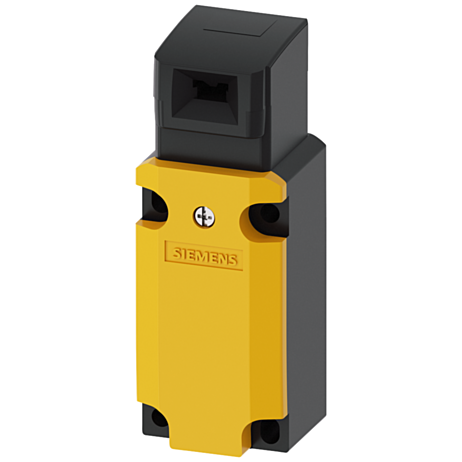

Safety position switch, 1 NO/2 NC, 5 directions of approach

In stock
Part No
3SE5112-0QV10-1AA7
Manufacturer
Siemens
£74.93

Safety position switch, 1 NO/2 NC, 5 directions of approach


Add to basket
Available for backorder
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

Safety position switch with separate actuator, Metal enclosure 40 mm, Device connection 1x (M20 x 1.5) Slow-action contacts 1 NO/2 NC, 5 directions of approaches, increased pull-out force 30 N, separate actuator 3SE5000-0AV0. must be ordered separately us display, M12 plug or locking device. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
The actuator is not included in the scope of delivery of the safety switches and must be ordered separately. Plug-in connectors and other mounting/connection accessories are available as accessories.
Safety is a SIRIUS business.
More Information
ManufacturerSiemens
GTIN4011209859531
Suitable for Safety FunctionsYes
No. of Normally Closed Contacts (NC) 2
Number of contacts as change-over contact0
No. of Normally Open Contacts (NO)1
Height of sensor37.3
Length of sensor110
Width sensor40
Rated operation current Ie at DC-13, 24 V3
Number of safety auxiliary contacts2
Forced openingtrue
Rated operation current Ie at DC-13, 125 V0.55
Rated operation current Ie at AC-15, 24 V6
Degree of protection (IP)IP66/67
Net Weight (Kg)0.484
