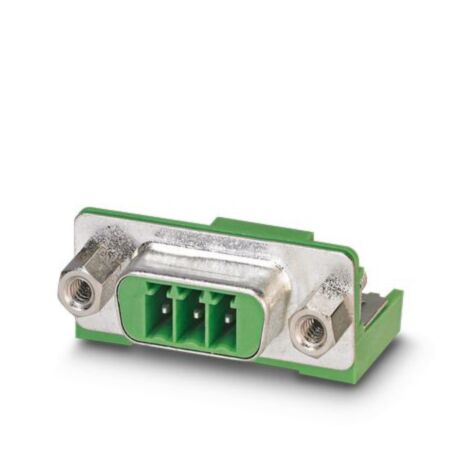

PSC 1,5/ 3-M - PCB header

In stock
Part No
1841857
Manufacturer
Phoenix
£5.35

PCB header


Add to basket
Available for backorder
Add To Quote

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

PCB headers, nominal cross section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: PSC 1,5/..-M, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Zigzag pinning W, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: PSC 1,5, Electrical properties: shielded, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting: Threaded flange, type of packaging: packed in cardboard
More Information
ManufacturerPhoenix
Type of connectionEV009325
Modular spacing contacts3.5
Number of plug-in contact rows1
Diameter connection pin1.2
Length pin3.5
Type of PCB fasteningEV000154
Connector modelEV009238
Angle PCB/contactEV000154
Contact typeEV000158
Rated current In8
Rated surge voltage4
Number of Positions3
Modular spacing connections3.5
Type of bandingEV009305
Type of fasteningEV000154
Rated voltage320
