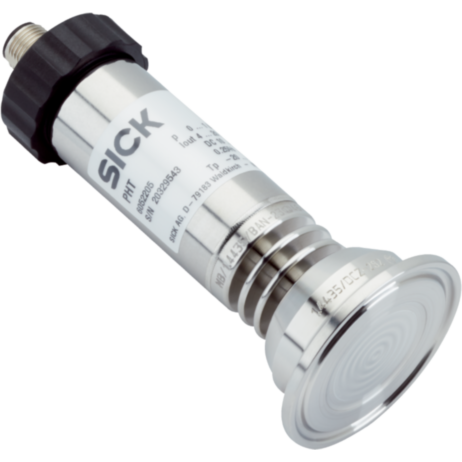

Pressure transmitter, PHT-RB010ST10S0AFT0Z

Pressure transmitter, PHT, PHT-RB010ST10S0AFT0Z, Pressure type: Gauge pressure, Pressure unit: bar, Measuring range: 0 bar ... 10 bar, Accuracy: ≤ ± 0.5 % of the span, Non-linearity: ≤ ± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2, Process connection: Tri-Clamp 1 ½", Process temperature: –20 °C ... +150 °C, Seal: Without seal, Output signal: 4 mA ... 20 mA, 2-wire, Connection type: Field housing, Enclosure rating: IP67, Supply voltage: 11 V DC ... 30 V DC
