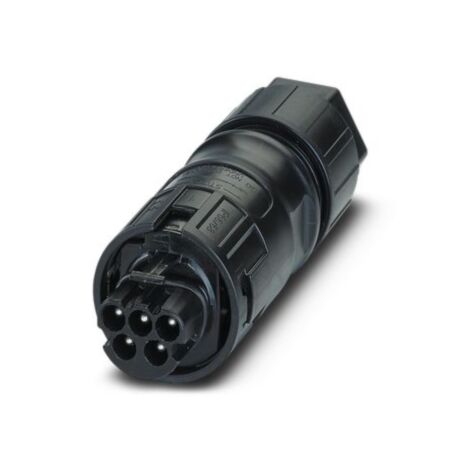

PRC 5-FC-MS6 8-21 - Connector

In stock
Part No
1014530
Manufacturer
Phoenix
£14.46

Connector


Add to basket
Available for backorder
Add To Quote

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

Connector, Range of articles: PRC 35, design: Release with tool or by hand (see accessories), housing material: PPE, color: black, number of positions: 5, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², rated voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Contact connection type: Pin, min. cable diameter: 8 mm, max. cable diameter: 21 mm. Ensures touch protection
More Information
ManufacturerPhoenix
GTIN4055626494524
With PE connectionfalse
With shield connectionfalse
Number of control contacts5
Ambient temperature105
Operating temperature (°C)-40
Number of Positions5
