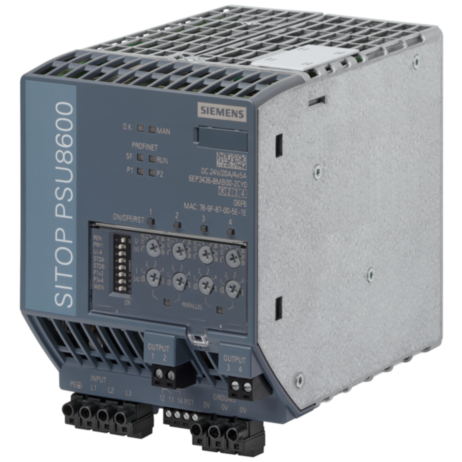

Power supply system SITOP PSU8600 3AC 24 V DC/20 A / 4x5 A PN/IE

In stock
Part No
6EP3436-8MB00-2CY0
Manufacturer
Siemens
£651.00

Power supply system SITOP PSU8600 3AC 24 V DC/20 A / 4x5 A PN/IE


Add to basket
1 Available for delivery
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

SITOP PSU8600 3AC 20 A/4x5 A PN stabilized power supply input: 400-500 V 3 AC output: 24 V DC/20 A/4x 5 A with PN/IE connection web server integrated OPC UA server integrated *Ex approval no longer available* U8600 modular power supply system with full TIA integration sets a new standard for system reliability and efficiency.
More Information
ManufacturerSiemens
Supply Voltage120 - 230V AC
GTIN4025515154600
2nd secondary output voltage5
Stabilizedtrue
Direct mounting possiblefalse
Output Voltage5V DC
3rd secondary output voltage5
Rated supply voltage AC 50 Hz400
Wall mounting possiblefalse
Power Output (W)480
Short-circuit-prooftrue
Built-in width100
Nominal value output voltage 324
Output Voltage VDC24
Built-in height225
Degree of protection (IP)IP20
Output Current (A)20
Net Weight (Kg)1.980
Width (mm)100
Depth (mm)150
