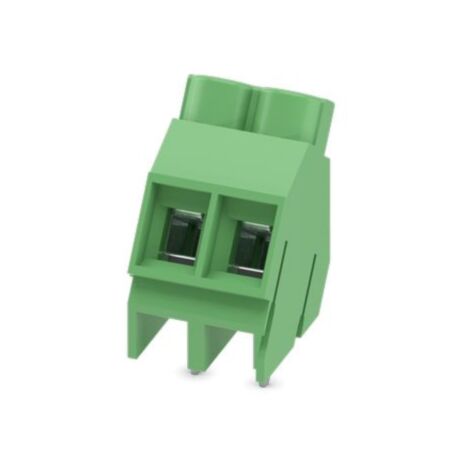

SMKDS 5/ 2-6,35 - PCB terminal block

In stock
Part No
1720033
Manufacturer
Phoenix
£1.22

PCB terminal block


Add to basket
Available for backorder
Add To Quote

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: SMKDS 5, pitch: 6.35 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 35 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
More Information
ManufacturerPhoenix
Angle PCB/conductor connectionEV000154
Connection type conductorEV000415
Diameter connection pin1.3
Length pin5
Rated current In32
Number of levels1
Rated surge voltage6
Housing colourGreen
Operating temperature (°C)-40
Material connection surfaceEV009526
Number of electrical connections2
Modular spacing connections6.35
Type of bandingEV009305
Rated voltage630
Height (mm)26.5
