MAIN RCT 3AC480V 60HZ 160A UK4%
MAIN RCT 3AC480V 60HZ 160A UK4%

MAIN RCT 3AC480V 60HZ 160A UK4%

In stock

Part No

4EU2752-1UB00-0AA0

Manufacturer

Siemens

£1,590.00

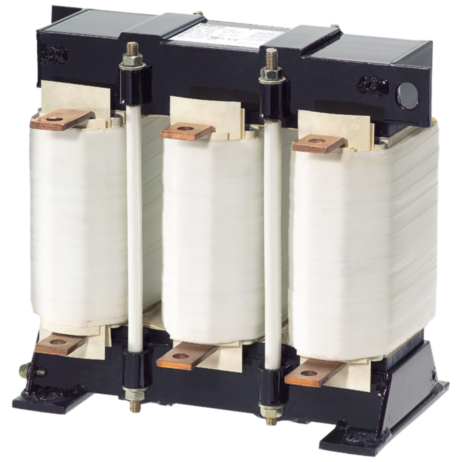

Line reactor for frequency converters, 3-ph. UN1(V) 480, Ithmax 1 A/F1(Hz) 160/60

Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

Overview

MAINS CHOKE F.FU; PHASES:3; UN1(V):480; ITHMAX 1(A) / F1(HZ):160 /60; I LN (A):144; UK(%):4; LN(MH):0,176; TA/ISOKL:40 /H; IP00; TYPE OF TERMINALS:FLAT-TYPE TERMINAL; EN 61558-2-20 UL/CSA-RECOGNIZED() CHOK The 4EU three-phase reactors are designed as commutation reactors for high rated current in combination with frequency converters and DC choppers and they reliably reduce conducted system interference of these loads.

Technical Info

More Information
Manufacturer	Siemens
Rated operating frequency	50
Number of poles, primary side	3
Suitable as output reactance coil	false
Suitable as interference suppression reactance coil	true
Suitable as ripple filter choke	false
Suitable as net reactance coil	true
Suitable as commutation reactance coil	true
Max. rated operation voltage Ue	480
Net Weight (Kg)	28.000
