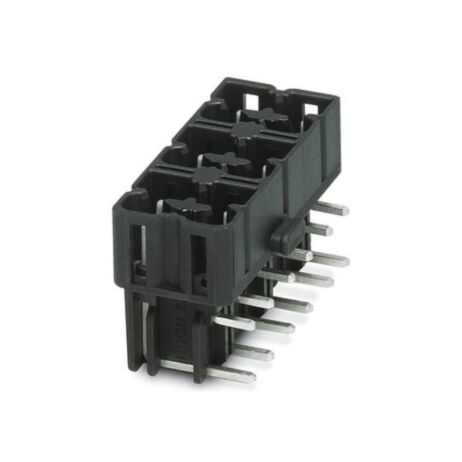

HSCH 2,5-3U/12 9005 - PCB header

In stock
Part No
2201788
Manufacturer
Phoenix
£6.03

PCB header


Add to basket
Available for backorder
Add To Quote

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

PCB headers, nominal cross section: 2.5 mm², color: black, nominal current: 8 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 12, number of rows: 2, number of positions: 12, number of connections: 12, product range: HSCH 2,5/..-G, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.8 mm, number of solder pins per potential: 1, plug-in system: HSC 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard
More Information
ManufacturerPhoenix
Type of connectionEV009325
Modular spacing contacts5
Number of plug-in contact rows2
Diameter connection pin1.3
Type of PCB fasteningEV000154
Connector modelEV009238
Angle PCB/contactEV000154
Contact typeEV000158
Rated current In8
Rated surge voltage4
Operating temperature (°C)-40
Number of Positions12
Modular spacing connections5
Type of bandingEV009305
Type of fasteningEV000154
Rated voltage320
