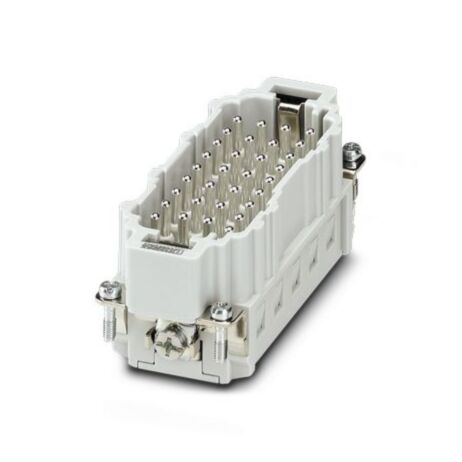

HC-BB32-I-PT-M - Contact insert

In stock

Part No

1014422

Manufacturer

Phoenix

£27.99

Contact insert

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

Overview

Contact insert, number of positions: 32+PE, size: B16, power contacts: 32, control contacts: 0, number of connections per position: 1, Pin, Push-in connection, 500 V, 16 A, 0.5 mm² ... 2.5 mm², application: Power

Technical Info

More Information
Manufacturer	Phoenix
Contact type	EV000158
Rated current In	16
Rated surge voltage	6
Number of power contacts	32
Number of control contacts	0
Contact insert without contacts	false
Diameter plug-in contact	2.5
Material connector insert	Thermoplastic
With wire protection	false
Material of contact insert	EV000403
Material contact	EV009430
Ambient temperature	125
Operating temperature (°C)	-40
Number of Positions	32
With protective conductor	true
Rated voltage	500
Width (mm)	34
Height (mm)	33.2
Depth (mm)	84.5
