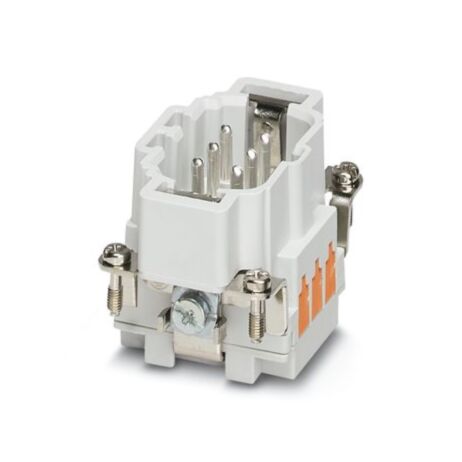

HC-B 6-ESTQ-2,5 - Contact insert

Name: HC-B 6-ESTQ-2,5 - Contact insert
Price: 12.15 GBP
Availability: InStock

In stock

Part No

1605611

Manufacturer

Phoenix

£12.15

Contact insert

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

Overview

Contact insert, number of positions: 6+PE, size: B6, number of connections per position: 1, Pin, QUICKON connection, 500 V, 16 A, 0.34 mm² ... 2.5 mm²

Technical Info

More Information
Manufacturer	Phoenix
Contact type	EV000158
Rated current In	16
Rated surge voltage	6
Number of power contacts	6
Contact insert without contacts	false
Diameter plug-in contact	2.5
Material connector insert	Thermoplastic
With wire protection	false
Material of contact insert	EV000403
Material contact	EV009430
Ambient temperature	125
Operating temperature (°C)	-40
Number of Positions	6
With protective conductor	true
Rated voltage	500
Width (mm)	34
Height (mm)	35
