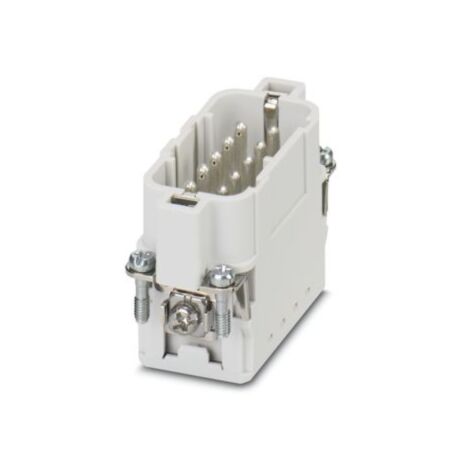

HC-A10-I-PT-M - Contact insert

Name: HC-A10-I-PT-M - Contact insert
Price: 12.67 GBP
Availability: InStock

In stock

Part No

1585359

Manufacturer

Phoenix

£12.67

Contact insert

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

Overview

Contact insert, number of positions: 10+PE, size: D15, number of connections per position: 1, Pin, Push-in connection, 250 V, 16 A, 0.14 mm² ... 2.5 mm²

Technical Info

More Information
Manufacturer	Phoenix
Contact type	EV000158
Rated current In	16
Rated surge voltage	4
Number of power contacts	10
Contact insert without contacts	false
Diameter plug-in contact	2.5
Material connector insert	Thermoplastic
With wire protection	false
Material of contact insert	EV000403
Material contact	EV009430
Ambient temperature	125
Operating temperature (°C)	-40
Number of Positions	10
With protective conductor	true
Rated voltage	250
Width (mm)	23
Depth (mm)	55.5
