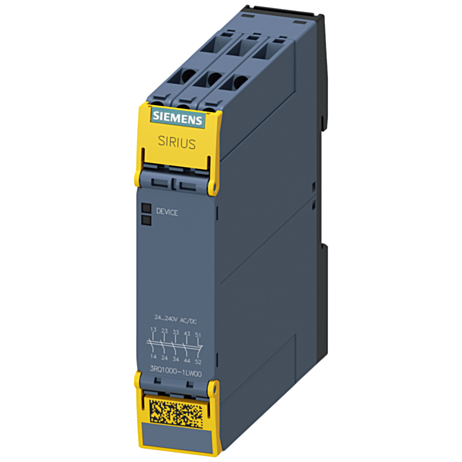

Force-guided coupling relay, 4 NO+1 NC, 24-240 V AC/DC, screw terminal, SIL 2/PL c

In stock
Part No
3RQ1000-1LW00
Manufacturer
Siemens
£118.64

Force-guided coupling relay, 4 NO+1 NC, 24-240 V AC/DC, screw terminal, SIL 2/PL c


Add to basket
1 Available for delivery
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

Positively driven coupling relay in industrial enclosure 4 NO contacts / 1 NC contact 24 V to 240 V AC/DC SIL 2 / PL c Screw terminals force-guided coupling relay SIRIUS 3RQ1 For fail-safe coupling of control signals to and from a controller and for contact extension of 3SK safety relays.
The force-guided 3RQ1 coupling relays have safety certification and can be connected to the 3SK safety relays. Thanks to the wide-range voltage input, they can be used universally. Removable terminals allow easy replacement of devices and fast wiring.
Devices are available with safety certification up to SIL 3/PL, with single and wide voltage range, various contact types and also with 17.5 mm width, each with screw or spring-loaded terminals (push-in).
SIRIUS relays - one range for every application.
More Information
ManufacturerSiemens
Rated Control Supply Voltage AC (50 Hz)24 V
GTIN4047621055473
Complete with socketfalse
With forced-guided contactstrue
Rated Control Supply Voltage DC24 V
Rated Control Supply Voltage AC (60 Hz)24 V
No. of Normally Closed Contacts (NC) 1
Number of contacts as change-over contact0
No. of Normally Open Contacts (NO)4
Degree of protection (IP)IP20
Net Weight (Kg)0.205
Width (mm)22.5
Height (mm)100
Depth (mm)90
