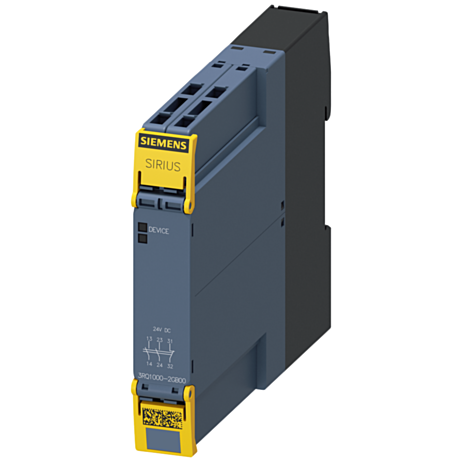

Force-guided coupling relay, 2 NO+1 NC, 24 V AC/DC, spring-type terminal, SIL 2/PL c

In stock
Part No
3RQ1000-2GB00
Manufacturer
Siemens
£92.79

Force-guided coupling relay, 2 NO+1 NC, 24 V AC/DC, spring-type terminal, SIL 2/PL c


Add to basket
Available for backorder
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

Positively driven coupling relay in industrial enclosure 2 NO contacts / 1 NC contact 24 V DC SIL 2 / PL c spring-type terminal (push-in) force-guided coupling relay SIRIUS 3RQ1 For fail-safe coupling of control signals to and from a controller and for contact extension of 3SK safety relays.
This force-guided 3RQ1 coupling relay has safety certification and can be connected to the 3SK safety relays via device connectors requiring little wiring. Removable terminals allow easy replacement of devices and fast wiring.
Devices are available with safety certification up to SIL 3/PL, with single and wide voltage range, various contact types and also with 17.5 mm width, each with screw or spring-loaded terminals (push-in).
SIRIUS relays - one range for every application.
More Information
ManufacturerSiemens
GTIN4047621055404
Complete with socketfalse
With forced-guided contactstrue
Rated Control Supply Voltage DC24 V
No. of Normally Closed Contacts (NC) 1
Number of contacts as change-over contact0
No. of Normally Open Contacts (NO)2
Degree of protection (IP)IP20
Net Weight (Kg)0.177
Width (mm)17.5
Height (mm)100
Depth (mm)120
