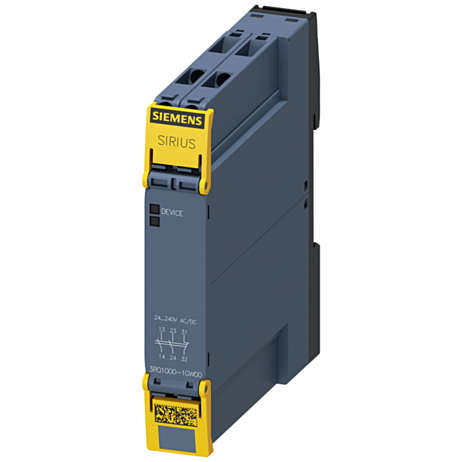

Force-guided coupling relay, 2 NO+1 NC, 24-240 V AC/DC, screw terminal, SIL 2/PL c

In stock
Part No
3RQ1000-1GW00
Manufacturer
Siemens
£102.73

Force-guided coupling relay, 2 NO+1 NC, 24-240 V AC/DC, screw terminal, SIL 2/PL c


Add to basket
Available for backorder
Add To Quote
Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

Positively driven coupling relay in industrial enclosure 2 NO contacts / 1 NC contact 24 V to 240 V AC/DC SIL 2 / PL c Screw terminals ious contact types and also with 17.5 mm width, each with screw or spring-loaded terminals (push-in).
SIRIUS relays - one range for every application.
More Information
ManufacturerSiemens
Rated Control Supply Voltage AC (50 Hz)24 V
GTIN4047621054483
Complete with socketfalse
With forced-guided contactstrue
Rated Control Supply Voltage DC24 V
Rated Control Supply Voltage AC (60 Hz)24 V
No. of Normally Closed Contacts (NC) 1
Number of contacts as change-over contact0
No. of Normally Open Contacts (NO)2
Degree of protection (IP)IP20
Net Weight (Kg)0.165
Width (mm)17.5
Height (mm)100
Depth (mm)90
