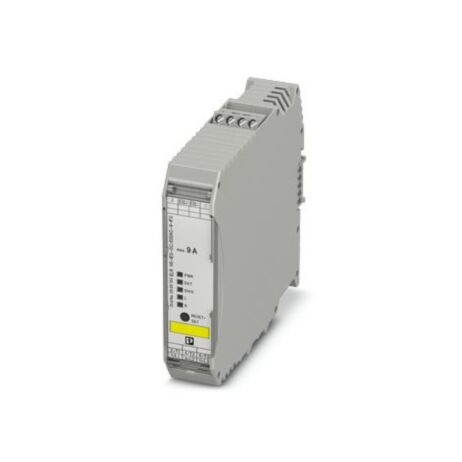

ELR H5-IES-SC/500AC-9-IFS - Hybrid motor starter

In stock

Part No

2905153

Manufacturer

Phoenix

£232.64

Hybrid motor starter

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

Overview

Hybrid motor starter; functions: Start motor, Reverse motor, Motor protection, Emergency stop, Can be networked; input: 24 V DC; output: 3~, 500 V AC, 9 A; connection method: Screw connection; connection to the Interface system; DIN rail connector provided

Technical Info

More Information
Manufacturer	Phoenix
Number of auxiliary contacts NO	0
Number of auxiliary contacts NC	0
Suitable for rail mounting	true
Rated Control Supply Voltage DC	19.2 V
Supporting protocol for PROFINET IO	No
Supporting protocol for other bus systems	Yes
Number of command positions	0
Overload release current setting (A)	1.5
With short-circuit release	false
Rated operation current AC-3 (A)	9
Type of motor starter	EV004002
External reset possible	true
Temperature compensated overload protection	false
Suitable for emergency stop	true
Type of electrical connection for auxiliary- and control current circuit	EV000415
Width (mm)	22.5
Height (mm)	107
Depth (mm)	114
