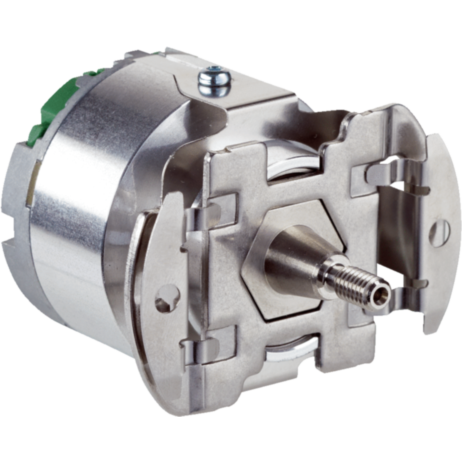

EKS36-2KF0A0S13

Motor feedback systems rotary HIPERFACE DSL®, EKS/EKM36, EKS36-2KF0A0S13, Communication interface: HIPERFACE DSL®, Model: Absolute Singleturn, Type: For integration, Resolution per revolution: 18 bit, Safety system: yes, Mechanical design: Tapered shaft, Connection type: Male connector, 4-pin, Technology: Optical, Operating temperature range: –20 °C ... +115 °C, Specialty: High impedance capacitive connection between encoder housing and encoder GND, possibility to connect cable shield to housing potential on PIN4 of DSL connector
