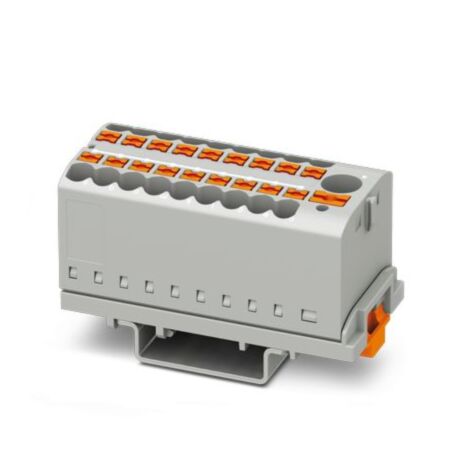

PTFIX 6/18X2,5-NS35 GY - Distribution block

In stock
Part No
3273110
Manufacturer
Phoenix
£6.63

Distribution block


Add to basket
15 Available for delivery
Add To Quote

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

Distribution block, Block with vertical alignment and integrated supply, nom. voltage: 690 V, nominal current: 24 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm² - 4 mm², Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
More Information
ManufacturerPhoenix
Rated current In24
Internally connected stagestrue
Number of clamp positions per level19
Number of levels1
Closing plate requiredNo
Type of electrical connection 2Other
Type of electrical connection 1 Other
Operating temperature (°C)-60
ColourGrey
Rated voltage690
Width (mm)28.6
Height (mm)59
Depth (mm)28.7
