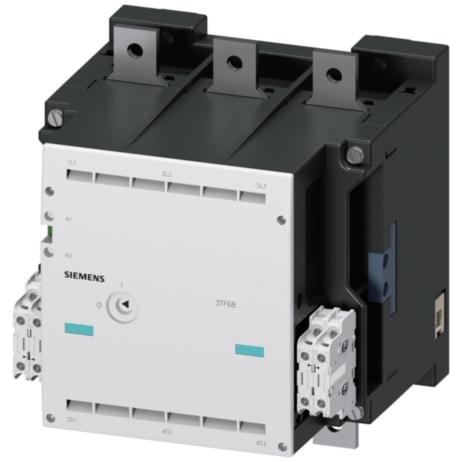

Contactor size 14, 3-pole, AC-3, 335 kW, 400/380 V (690 V) (4 NO + 4 NC)

vacuum contactor AC-3e/AC-3 630 A, 335 kW / 400 V, Ue 690 V, 3-pole, Uc: 110-132 V AC(50/60 Hz) drive: conventional auxiliary contacts 4 NO + 4 NC main circuit: busbar control and auxiliary circuit: screw terminal Vacuum contactor 3TF6 for switching motors.
The 3TF6 vacuum contactors offer convincing high performance from a compact design with high contact reliability. They are also characterized by their particularly long switching endurance. They are therefore particularly well suited to frequent switching in inching operation. Pre-installed auxiliary switches reduce the complexity of your design. The devices are approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in two sizes, with AC and DC operation, and in a wide performance range. The devices can be connected in the main circuit by means of rails.
A wide range of accessories is available for these contactors, such as surge suppressors, auxiliary switches or terminal covers.
