HC-A04-I-UT-F - Contact insert

Name: HC-A04-I-UT-F - Contact insert
Price: 9.64 GBP
Availability: InStock

In stock

Part No

1585249

Manufacturer

Phoenix

£9.64

Contact insert

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Phoenix Approved Partner
Learn more

Overview

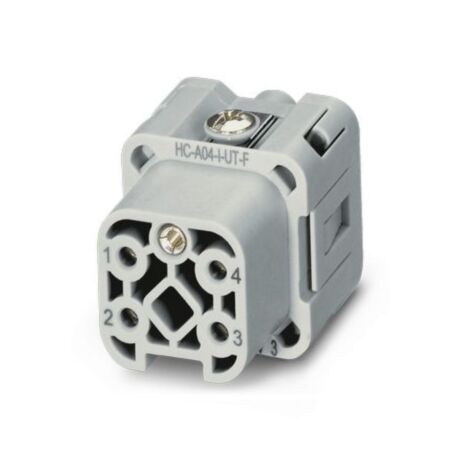

Contact insert, number of positions: 4+PE, size: D7, number of connections per position: 1, Socket, Screw connection, 230 V/400 V, 10 A, 0.5 mm² ... 2.5 mm²

Technical Info

More Information
Manufacturer	Phoenix
Contact type	EV000218
Rated current In	10
Rated surge voltage	4
Number of power contacts	4
Contact insert without contacts	false
Diameter plug-in contact	1.6
Material connector insert	Thermoplastic
With wire protection	false
Material of contact insert	EV000403
Material contact	EV009430
Ambient temperature	125
Operating temperature (°C)	-40
Number of Positions	4
With protective conductor	true
Rated voltage	230
Width (mm)	28
Height (mm)	28.5
Depth (mm)	21
