COM CHK 1AC400V 50HZ 24A UK4%
COM CHK 1AC400V 50HZ 24A UK4%

COM CHK 1AC400V 50HZ 24A UK4%

In stock

Part No

4EM5100-2CB00

Manufacturer

Siemens

£275.00

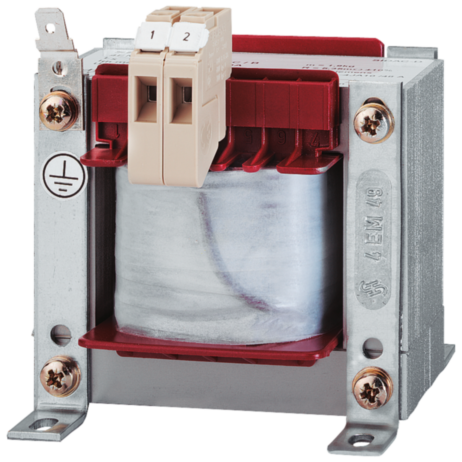

Line reactor, 1-ph., UN1(V) 400, Ithmax 1(A)/F1(Hz):24/50, I LN(A)21.6

Extended Warranty: up to 4 years on Siemens PLCs

Next Day Delivery

Order before 14:30 for UK same day dispatch

Same Day Delivery

Urgent requirement?
Contact your local branch

Authorised distributor

Siemens Approved Partner
Learn more

Overview

COMMUTATING CHOKE FOR CONVERTER; PHASES:1; UN1(V):400; ITHMAX 1(A) / F1(HZ):24 /50; I LN (A):21,6; UK(%):4; LN(MH):2,02; TA/ISOKL:40 /B; IP00; TYPE OF TERMINALS:SCREW CONNECTION; EN 61558-2-20 CHOKE The 4EM single-phase reactors and 4EP three-phase reactors are designed as commutation reactors in combination with frequency converters and DC choppers and they reliably reduce conducted system interference of these loads.

Technical Info

More Information
Manufacturer	Siemens
Rated operating frequency	50
Rated current AC	21.6
Number of poles, primary side	1
Suitable as output reactance coil	false
Suitable as interference suppression reactance coil	true
Suitable as ripple filter choke	false
Suitable as net reactance coil	true
Suitable as commutation reactance coil	true
Max. rated operation voltage Ue	400
Net Weight (Kg)	4.400
