8020010-PKE7508-UK INSULATED END(PK=500)

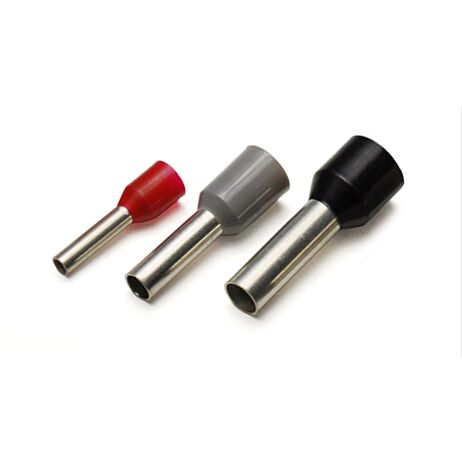

The PKE range of end sleeves is manufactured from Tin plated electrolytic Copper with a purity greater than 99,9%. Designed and developed to reinforce the fine wire strands when terminating a cable into a connector block.

Technical details

The connectors are manufactured from Copper Cu DHP UNI 5649/1988 (corresponding to: SF-Cu DIN 1787/1973 Cu/b1 NF A 51-050) Tin plated with a minimum thickness of 3μm. Main characteristics of the PA6 sleeves: DIELECTRIC STRENGTH (KV/mm) : >16,5 VOLUME RESISTIVITY (Ω • cm) : >10¹³ MAX OPERATING TEMPERATURE (°C) : 115-130 FLAMMABILITY (UL94) : V2 DENSITY (g/cm³) : 1,14 WATER ABSORPTION (%) : 1,5 BREAKING LOAD (N/mm²) : 77 The connectors can be stored at a minimum temperature not below - 40°C.
