2845010-Z2.5-1 TERMINAL BLOCK(PK=25)

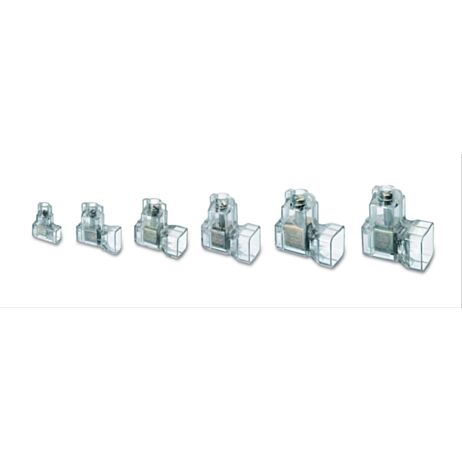

One way, single pole terminal blocks for conductors sections from 0.5 to 35 sqmm. Self contained and robust, they are ideal for the fast and safe installation for industrial and domestic applications. The indirect clamping of the "ZETAmini" terminal blocks guarantees a low and stable contact resistance. The easy-entry receptacle also grants a fast and reliable insertion of the cable.

Type	Nominal section	Connecting capacity* No. of conductors x section
Z2.5-1	2,5∎	2 x 2,5∎ R/F 2÷3 x 1,5∎ R/F 2÷5 x 1,0∎ R/F	2÷6 x 0,75∎ R/F 2÷10 x 0,5∎ R/F 2÷18 x Ø0,4÷0,6 mm communication type wire
Z6-1	5∎	2 x 6∎ R/F 2÷3 x 4∎ R/F 2÷4 x 2,5∎ R/F 2÷6 x 1,5∎ R/F 2÷6 x 1∎ R/F	2÷10 x 0,75∎ R/F 2÷12 x 0,5∎ R/F (1 x 6∎F) + (4 x 1,5∎F) (1 x 6∎F) + (2 x 2,5∎F)
Z10-1	10∎	2 x 10∎ R/F 2÷3 x 6∎ R/F 2÷5 x 4∎ R/F 2÷8 x 2,5∎ R/F	2÷12 x 1,5∎ R/F 2÷20 x 1∎ R/F 2÷25 x 0,75∎ R/F (1 x 6∎F) + (1 x 4∎F) + (2 x 2,5∎F) + (3 x 1,5∎F)
Z16-1	16∎	2 x 16∎ R/F 2÷3 x 10∎ R/F 2÷5 x 6∎ R/F	2÷8 x 4∎ R/F 2÷12 x 2,5∎ R/F 2÷18 x 1,5∎ R/F
Z25-1	25∎	2 x 25∎ R/F 2÷3 x 16∎ R/F 2÷4 x 10∎ R/F	2÷8 x 6∎ R/F 2÷11 x 4∎ R/F 4÷16 x 2,5∎ R/F
Z35-1	35∎	2 x 35∎ R/F 2÷3 x 25∎ R/F 2÷4 x 16∎ R/F 2÷7 x 10∎ R/F	2÷11 x 6∎ R/F 4÷17 x 4∎ R/F 5÷28 x 2,5∎ R/F

* A mixture of conductor sizes may be connected to the terminal block provided that the sum of their sections is less than twice the nominal section. R = Rigid conductor F = Flexible conductor Technical features: Self-extinguishing Polycarbonate body Electrolytically Zinc plated, tempered Steel clamp and screw Electrolytically tin plated Steel connection plate
